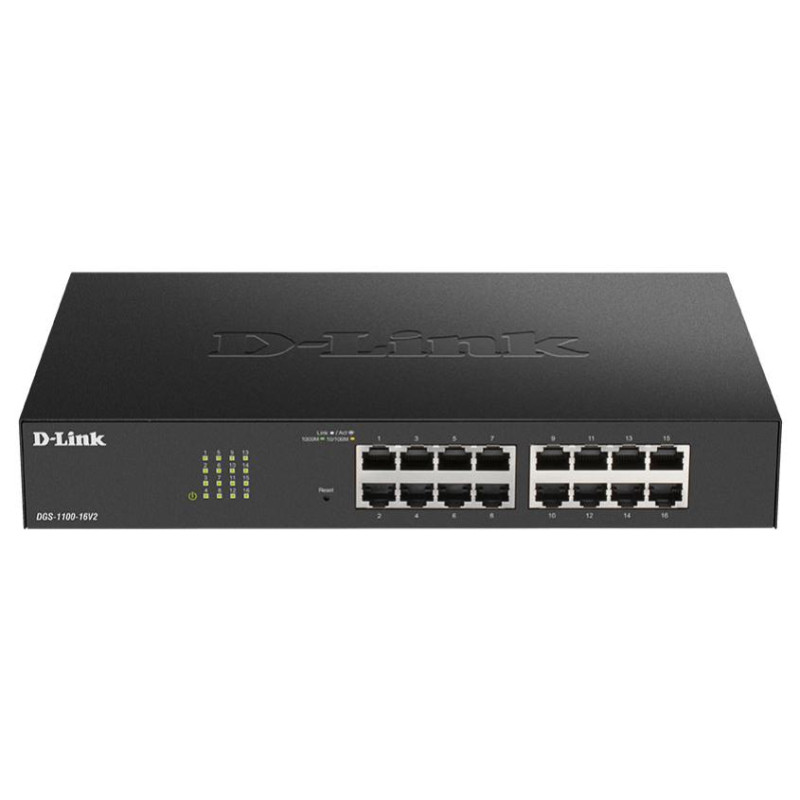

16-Port Gigabit Smart Managed Switch
$202.84
Tax included
The DGS-1100V2 Series supports surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from...
The DGS-1100V2 Series supports surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from...
Product Information
- RJ-45 Ports: 16
- RJ-45 Speeds: 10/100/1000
- Combo Ports (RJ-45 + SFP): 8 RJ45 Ports
- SFP (Small Form-Factor Pluggable) Ports : 0
- SFP Speeds: 0
- PoE++ (60w) or higher available?: No
- Number of PoE Ports: 0
- Extended PoE?: No
- Capacity in Millions of Packets per Second (mpps): 23.81 Mpps
- Switching Capacity in Gigabits per Second (Gbps): 32 Gbps
- Web-based GUI: Yes
- Redundant Power Supply: No
- 19" Rack Mountable: Desktop or 19, rack mount (mounting brackets included)
- DIN-Rail Mountable: No
- Stacking Capacity (Physical): No
- Stacking Capacity (Virtual): No
- IPv4 Routing: Yes
- IPv6 Routing: Yes
- DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes
- Ruggedized: No
- Operating Temperature: -5 to 50 C
- Unit dimensions: 280 x 180 x 44 mm
- Warranty Licence: Limited Lifetime Warranty
Specifications
| Cloud Managed | No |
|---|---|
| Cooling | Passive |
| Form factor | Rack-mount |
| Licence Required | No |
| Main Port Type | Ethernet |
| Managed | Smart Managed |
| OSI Layer Capability | Layer 2 |
| PoE Budget | 0 |
| Port Count | 16 |
| Port Speed | 10/100/1000 |
| Redundant Power Supply | No |
| SFP Ports | 0 |
| Stackable | No |
| Standard Warranty | Limited Lifetime Warranty |
Resources
Product information source: MMT product page.
The DGS-1100V2 Series supports surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from...
